RightMark Audio Analyzer test report
| Testing device | Space Key |
| Sampling mode | 24-bit, 44 kHz |
| Interface | ASIO |
| Testing chain | External loopback (line-out - line-in) |
| RMAA Version | 6.4.1 |
| 20 Hz - 20 kHz filter | ON |
| Normalize amplitude | ON |
| Level change | -5.6 dB / -5.6 dB |
| Mono mode | ON |
| Calibration singal, Hz | 1000 |
| Polarity | correct/correct |
Summary
| Frequency response (from 40 Hz to 15 kHz), dB | +0.01, -0.09 |
Excellent |
| Noise level, dB (A) | -108.9 |
Excellent |
| Dynamic range, dB (A) | 108.9 |
Excellent |
| THD, % | 0.0032 |
Very good |
| THD + Noise, dB (A) | -87.2 |
Good |
| IMD + Noise, % | 0.0049 |
Excellent |
| Stereo crosstalk, dB | -58.0 |
Average |
| IMD at 10 kHz, % | 0.019 |
Very good |
| General performance | Very good |

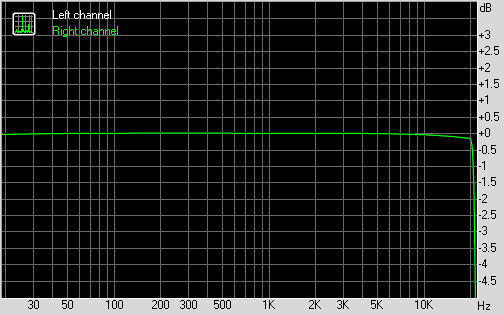

Frequency response
Left |
Right |
|
| From 20 Hz to 20 kHz, dB | -0.18, +0.01 |
-0.18, +0.01 |
| From 40 Hz to 15 kHz, dB | -0.09, +0.01 |
-0.09, +0.01 |

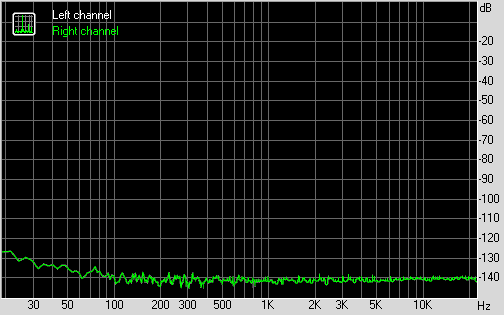

Noise level
Left |
Right |
|
| RMS power, dB | -107.8 |
-107.8 |
| RMS power (A-weighted), dB | -108.9 |
-108.9 |
| Peak level, dB FS | -86.5 |
-86.5 |
| DC offset, % | +0.0 |
+0.0 |
Dynamic range
Left |
Right |
|
| Dynamic range, dB | +107.8 |
+107.8 |
| Dynamic range (A-weighted), dB | +108.9 |
+108.9 |
| DC offset, % | -0.00 |
-0.00 |

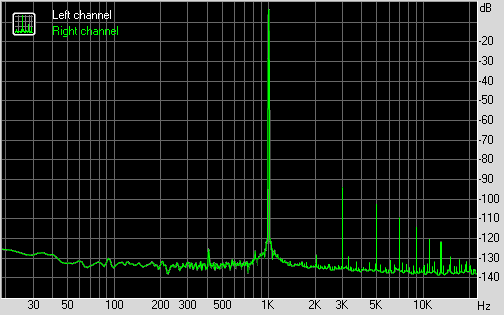

THD + Noise (at -3 dB FS)
Left |
Right |
|
| THD, % | +0.0032 |
+0.0032 |
| THD + Noise, % | +0.0034 |
+0.0034 |
| THD + Noise (A-weighted), % | +0.0044 |
+0.0044 |

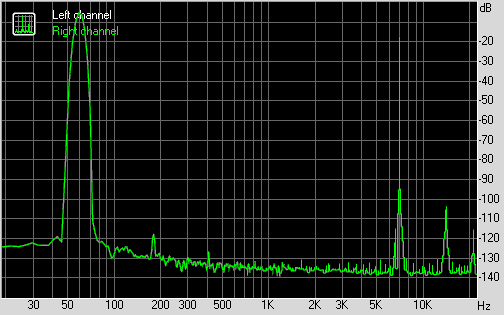

Intermodulation distortion
Left |
Right |
|
| IMD + Noise, % | +0.0049 |
+0.0049 |
| IMD + Noise (A-weighted), % | +0.0047 |
+0.0047 |
Stereo crosstalk
Left |
Right |
|
| Crosstalk at 100 Hz, dB | -5 |
-108 |
| Crosstalk at 1000 Hz, dB | -5 |
-109 |
| Crosstalk at 10000 Hz, dB | -6 |
-107 |

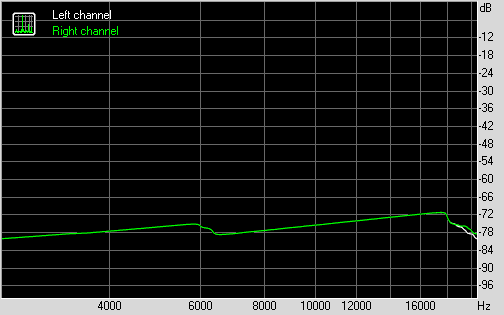

IMD (swept tones)
Left |
Right |
|
| IMD + Noise at 5000 Hz, | 0.0157 |
0.0157 |
| IMD + Noise at 10000 Hz, | 0.0168 |
0.0168 |
| IMD + Noise at 15000 Hz, | 0.0244 |
0.0244 |
